NATMAP 2003

NATMAP RASTER MOSAIC 2003

NATMAP RASTER MAPSHEETS 2003

$90ea (rrp $99) inc GST and postage

	Features
	Mosaic vs Mapsheets
	Map Images

	Selecting, Using, Printing & Exporting
	Specifications
	Conditions of Use
	How to order

NATMAP Raster provides georeferenced digital images of the Australian Government's 1:250,000 scale topographic maps covering the whole of Australia.

The product is ideal to use anywhere a large number of maps is required, or where storage is limited. By replacing 513 maps with just two CDs, the maps are conveniently accessible, compact to store and the images will not wear out. The maps in NATMAP Raster are compatible for use in combination with Global Positioning System, Geographic Information System, and graphics software.

NATMAP Raster 250K contains all the software needed to use the maps on the Windows 95/98/2000/NT4/Me/XP operating system - all you need is Internet Explorer 5.5.

Changes from V3 - click here.

Major Features

	All published 1:250,000 scale NATMAPs up to August 2003.
	All maps now have the same look and contain the same information.
	Over 150 new maps added.
	Load maps by place name, coordinates, NATMAP name, or index map.
	Display coordinates as latitude/longitude or grid coordinates, on either the GDA or AGD datum.
	Image resolution to 200dpi.
	Overview windows provide convenient indication of the location of the map on display in relation to the surrounding region and Australia.
	Includes software to select, view and manage the digital maps.
	Compatible with GPS software such as OziExplorer or TrackRanger by Advantech Design. Also compatible with most GIS and graphics packages, either by direct viewing or by exporting to GeoTIFF, TIFF, JPEG, Bitmap, or PNG formats.

[back to top]

Which version (Mapsheets or Mosaic) should I buy?

In 2003, two versions of NATMAP Raster were released. The differences are outlined below.

Mapsheets:

	all 513 1:250,000 scale NATMAPs plus three map insets are included as individual maps. Each map image is supplied with all surrounding map information including legend, scale bar, and technical information about the map and its projection.
	uses the Map Grid of Australia as their projection, meaning that the coordinates of the maps are measured in metres and the maps can be used for measuring distances and areas.
	pixel size is 31.75m.

Mosaic:

	all 513 1:250,000 scale NATMAPs plus three map insets are joined together into one map.
	The coordinates are latitude/longitude, which are ideal for interfacing with GPS software, but are not suitable for measuring distances or areas.
	The pixel size in metres varies depending where you are in Australia - from 36m in Torres Strait to 26m in Hobart.
	Mosaic also includes a single map image of all 1:1,000,000 NATMAPs and a Landsat Satellite Image Mosaic of Australia, both of which use latitude/longitude coordinates.

NATMAP Raster Map Images

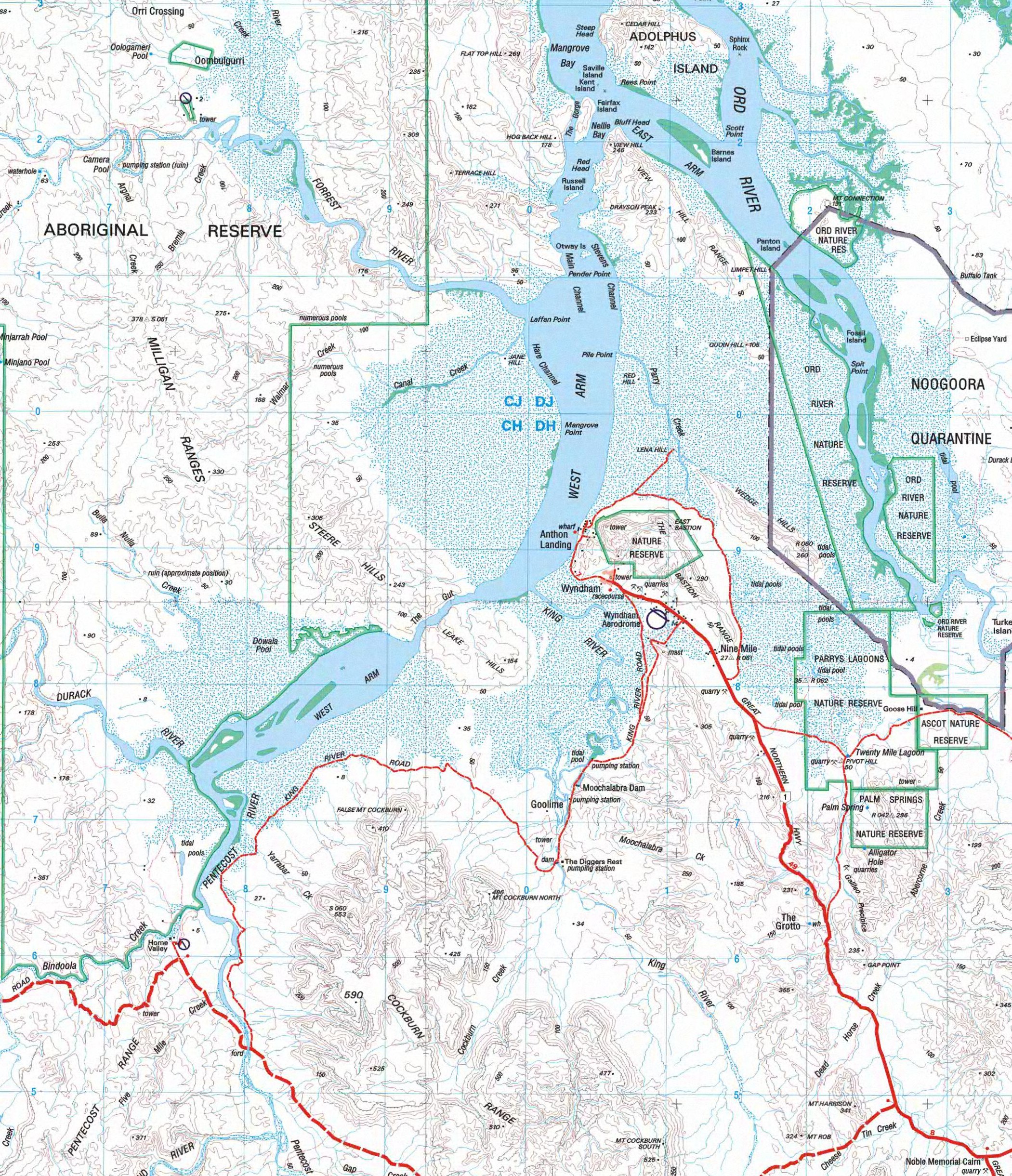

Thumbnail Sample - Click to View larger Version [JPG 2Mb]. (GA2135)

Landsat satellite image of Wyndham, WA. Click to view larger version of satellite image [JPG 0.9 Mb]. (GA2137)

Sample images over Wyndham, Western Australia. Click on the images at left to view full resolution versions. Note that each full resolution image is between 1-2Mb.

The sources of the map images used in NATMAP Raster are the Australian Government's 1:250 000-scale NATMAPs. The satellite image included in the Mosaic product was produced by the Australian Greenhouse Office from Landsat satellite imagery supplied by ACRES.

ECW logo (GA2139) Maps are stored in Enhanced Compressed Wavelet (ECW) format. This image format stores images like Zip files or JPEGs, but at a much higher compression rate with minimal loss of picture quality. For more information on this image format, please refer to the Products page on the ER Mapper website.

Copyright of the data used in the Place Name Search resides with the relevant State, Territory and Commonwealth governments within Australia, who are the custodians of the information within their jurisdiction.

To ensure positional accuracy, all 1:250,000 scale digital maps were created by directly converting the digital data used to produce the maps into images, rather than by scanning a paper map.

[back to top]

Selecting, Viewing, Printing and Exporting NATMAP Raster Maps

NATMAP Raster 250K Mapsheets comes with map viewing software called RASTER VIEWER developed in conjunction with CSIRO Mathematics and Information Sciences. The RASTER VIEWER software allows the user to select maps from

	the zoomable map index,
	the list of map numbers,
	the list of map names,
	the Gazetteer of Australia,
	by latitude and longitude, or
	MGA grid coordinates.

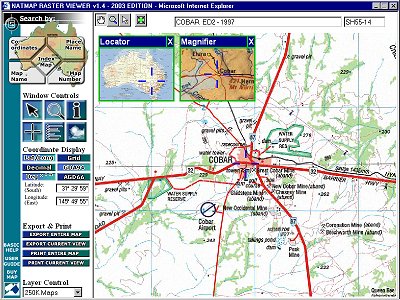

RASTER VIEWER allows you to zoom and pan on the maps. The Viewer also displays the position of the cursor and your location relative to the rest of Australia. See an example [JPG 57Kb]. In Mapsheets, when you roam off a sheet, the click-pan tool allows you to follow a feature across map sheets by loading the neighbouring map at the map view scale and correct location.

You can print the whole map or the currently displayed area. Additional information such as the map name, the coordinates of the top left and bottom right corners, and a scale bar (Mapsheets only) are also printed.

It is easy to export the currently displayed area to GeoTIFF, TIFF, PNG, JPEG or BMP formats. The GeoTIFF option keeps all of the geographical information for the file. The ECW images can be viewed directly in many software packages by downloading an ECW plug-in for your software from the ER Mapper website.

[back to top]

Product Specifications

Coverage: National

Currency:
1:250,000 scale maps: ranges between 1994 and 2003.
1:1,000,000 maps (Mosaic only): ranges between 1972 and 1983.
Satellite image (Mosaic only): July 1999 to September 2000.
1:5,000,000 map: 1996

Coordinates: MGA (Mapsheets); latitude/longitude (Mosaic). Software is capable of interpreting and displaying geographical and grid values for GDA94 and AGD66 datums.

Media: 2 CD-ROM set (software to find and view maps runs on 95/98/2000/NT/Me/XP)

Platform: Windows 95/98/2000/NT/Me/XP. NATMAP Raster is not supported on Macintosh, Linux, or Unix platforms as much of the third-party core functionality is Windows-based.

Format: Stored in ECW format, 200dpi resolution. Software supplied with data allows downloading in GeoTIFF, PNG, JPEG or BMP.

Forward Program: Newly-revised 1:250,000 scale NATMAPs will be integrated into updates of this product.

Minimum CPU required: 133MHz Pentium. Note that the Raster software is not supported on Macintosh platforms.

Minimum RAM required: 32Mb

Minimum Disk Space: 26Mb for installation of program files only. Copying of entire contents of CDs onto hard drive requires 1.3Gb

Minimum display requirements: 800*600 with 64K colours

Minimum browser requirements: Microsoft Internet Explorer 5.5 or higher. Note Netscape is not supported.

[back to top]

Conditions of Use

The licence conditions that apply to the use of NATMAP Raster 250K Mapsheets allow for non-commercial applications within your organisation or for personal use. If you wish to use the data for commercial purposes or on the Internet, please contact Geoscience Australia's Copyright Officer.

[back to top]

How to Order NATMAP Raster

Easy, click here for details

[back to top]

Disclaimer

Topographic information included in the map images have been checked from multiple sources including SPOT imagery. Maps have not been field checked and some information may not be accurate. Every effort has been made to make the map images a useful reference.

The custodians of the data for the Gazetteer of Australia do not guarantee that the data is free from errors and omissions.
